The Machine Lab
Length 19"
Width 17"
Height 5.75"
MSRP:
$6,450

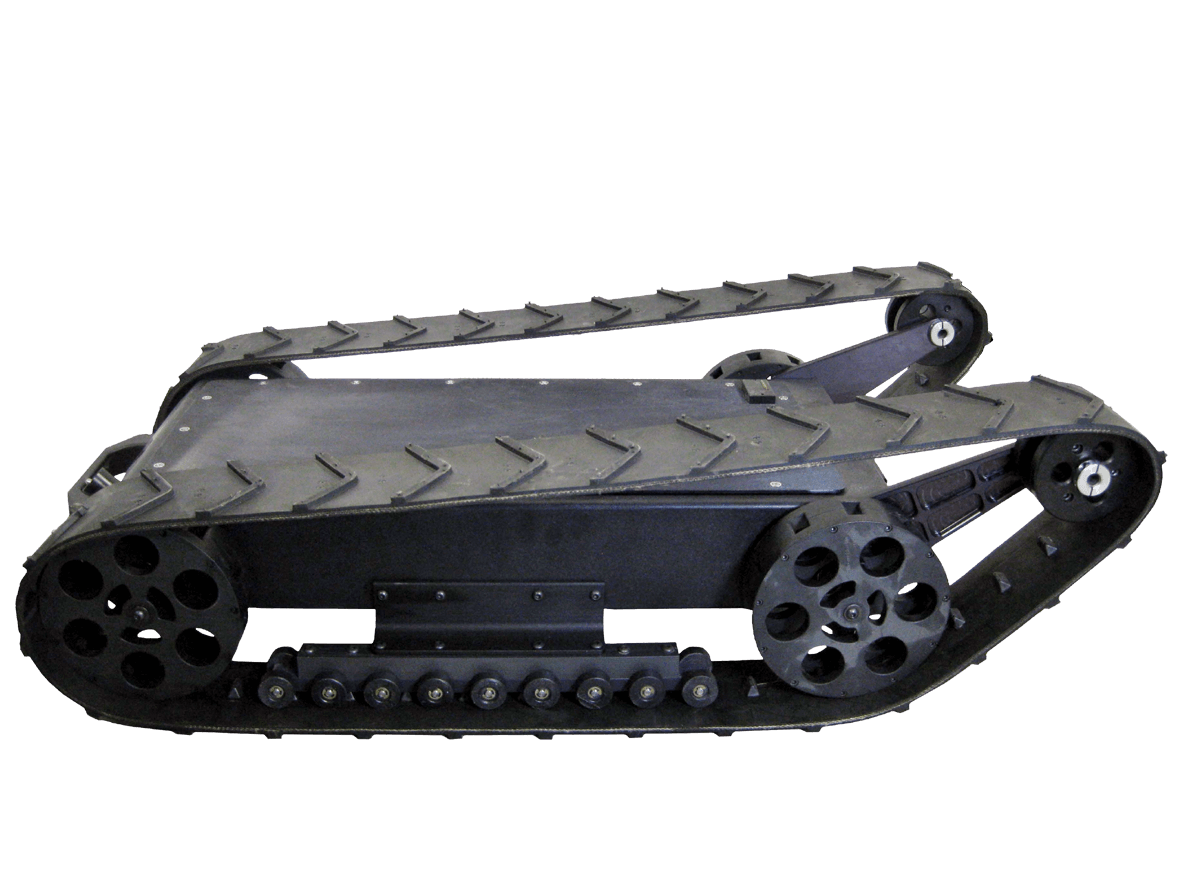

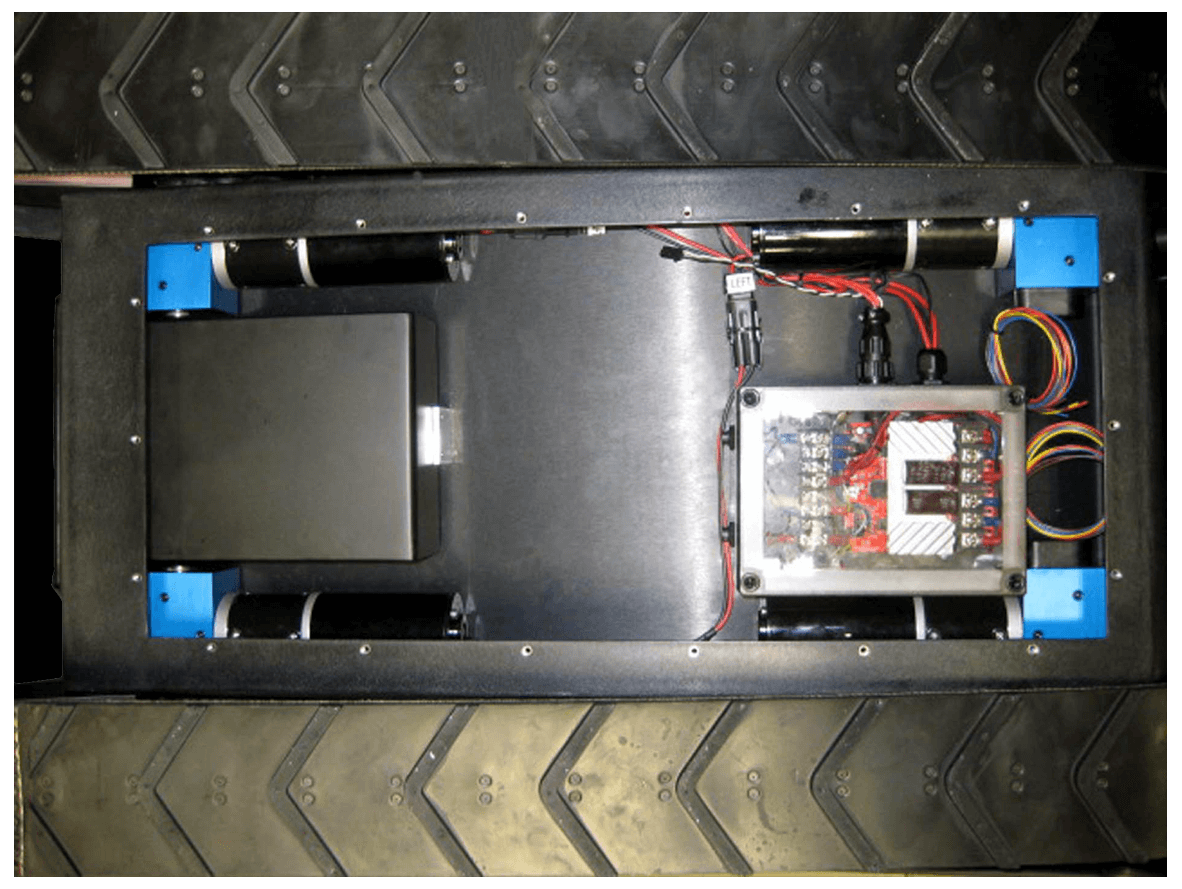

The MMP-40X basic mobile platform is a rugged low profile tracked unit capable of carrying 40 pounds of payload with ease. This unit has an enhanced track geometry that allows it to tackle large obstacles and climb many types of stairs. The chassis is made of aluminum and the unit comes complete with high torque 52mm motors, motor controller, batteries, battery charger, power switch, and LED fuel gauge.
Everything is wired and ready to go out of the box. The only thing necessary for operation is a control signal from a device such as an RC radio controller, micro controller or computer. There are multiple control protocols that can be used including PWM, analog, RS-232 serial and Packetized RS-232 serial. This unit also has an optional set of encoders for the drive motors which can be interfaced with the included motor controller.
The MMP-40X can be outfitted with high torque or high speed drive motors depending on your application requirements. Like all of the other MMP mobile robot platforms we can customize the unit to fit your needs. Please see the specification sheet for more information.
46
lbs
Weight
50-60
lbs
Payload
4.5
ft./sec
Speed
4
hrs
Runtime
